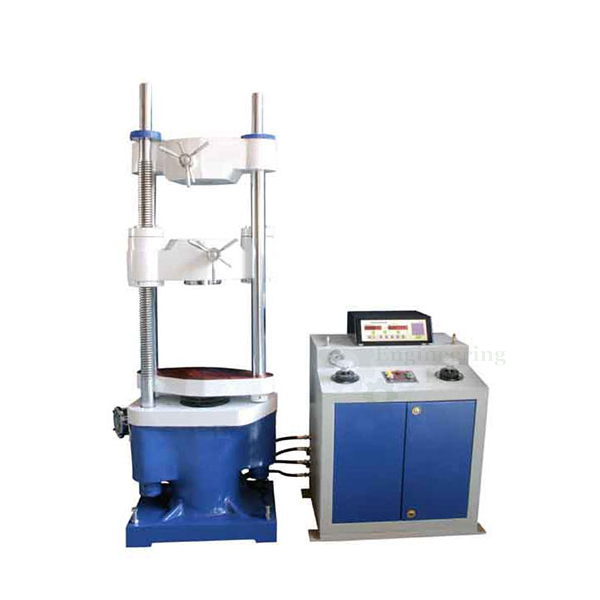

Digital Universal Testing Machine
Product Code : EL-STLE-10958
Digital Universal Testing Machine (code EL-STLE-10958) is a 500 kN (50 Tonnes) machine for testing standard specimens and also structures, loading within ±1% and straining at speeds that can be varied for different materials. Motor-driven threaded columns adjust the lower cross head for fixing specimens, a simultaneous roll autographic recorder is supplied as standard, and standard and special attachments are available.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Capacity | 500 kN (50 Tonnes) |
| Loading accuracy | As high as ±1% |
| Straining speed | Variable, to suit a wide range of materials |
| Autographic recorder | Simultaneous roll type, supplied as standard, for studying the behaviour of materials |
| Dial | Large size dial for reading |
| Column clearance | Large effective clearance between columns for testing standard specimens and structures |
| Specimen change | Change from plain to threaded and screwed specimens |
| Cross head adjustment | Motor-driven threaded columns for adjusting the lower cross head when fixing the test specimen |
| Metal components | Chrome plated |
| Attachments | Wide range of standard and special attachments and accessories available |
| Product code | EL-STLE-10958 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Digital Universal Testing Machine Used For?
A universal testing machine takes its name from the fact that one frame carries out tension, compression and other strength tests simply by changing the attachments. With 500 kN available, this machine covers standard test specimens as well as structures that fit between its widely spaced columns. The operator runs the lower cross head up or down on the motor-driven threaded columns to suit the specimen length, fixes the specimen, chooses a straining speed suited to the material and applies load, while the autographic recorder traces the behaviour of the material through the test.
What to Specify When Ordering
- Quantity — the number of machines required.
- Attachments — the standard or special attachments and accessories needed for the tests to be carried out.
Frequently Asked Questions
What is the capacity of this machine?
It has a capacity of 500 kN, equal to 50 Tonnes, with loading accuracy as high as ±1%.
Can it test structures as well as specimens?
Yes. The large effective clearance between the columns allows structures to be tested as well as standard specimens.
How is the lower cross head positioned?
Motor-driven threaded columns move the lower cross head, so it can be brought to the right height for the specimen and the specimen fixed without delay.
Is a record of each test produced?
A simultaneous roll autographic recorder is supplied as standard, giving a trace of the test from which the behaviour of the material can be studied.
Which specimen types can be gripped?
The machine allows a change from plain specimens to threaded and screwed specimens, and a wide range of standard and special attachments and accessories is available.
Can the straining speed be changed?
Straining can be done at variable speeds, chosen to suit the wide range of materials that the machine is used to test.
OEM Manufacturer
Buyers of the Digital Universal Testing Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests steel and materials testing machines, hardness testers, metallography equipment and rebar machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
