Spring Testing Machine
Product Code : EL-STLE-10960

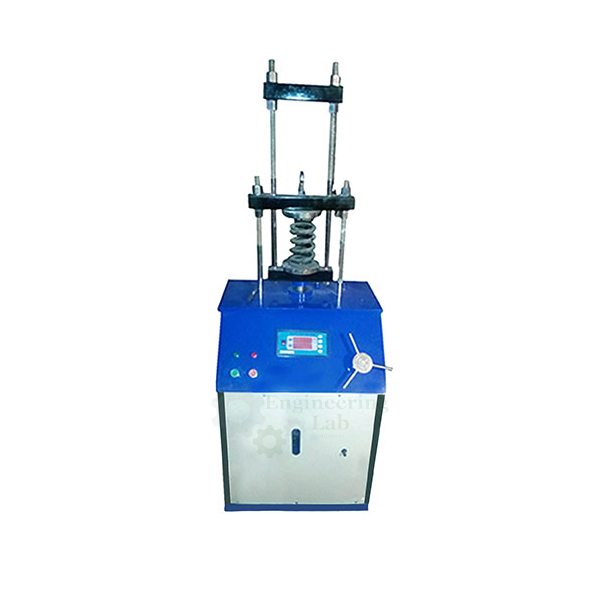

Spring Testing Machine (code EL-STLE-10960) is a 2000 kgf machine for load deflection tests on tension and compression springs. It is supplied complete with a fixture for holding tension springs and a pair of compression platens for holding compression springs, so both kinds of spring can be tested on the same machine.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Load deflection tests on compression and tension springs |
| Springs tested | Tension and compression |
| Capacity | 2000 kgf |
| Supplied with | Fixture for holding tension springs; a pair of compression platens for holding compression springs |
| Product code | EL-STLE-10960 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Spring Testing Machine Used For?
The stiffness of a spring, or spring rate, is the load needed to deflect it by a unit distance, and springs for machines, vehicles and instruments are checked by loading them and measuring how far they compress or extend. A compression spring is placed between the pair of platens and pressed, while a tension spring is held in its fixture and pulled; at each load the deflection is noted, and the load-deflection relation gives the rate and shows whether the spring meets its design values. The machine handles spring loads up to 2000 kgf.
What to Specify When Ordering
- Quantity — the number of spring testing machines required.
Frequently Asked Questions
Which springs can be tested?
Both tension springs and compression springs can be tested, using the holding fixture for tension springs and the pair of platens for compression springs.
What is the capacity?
The machine has a capacity of 2000 kgf, which is the largest spring load it can apply during a load deflection test.
What comes with the machine?
It is supplied complete with a fixture for holding tension springs and a pair of compression platens for compression springs.
What does a load deflection test show?
It shows how far a spring compresses or extends under each load. From this relation the spring rate is found and compared with the design value for the spring.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Spring Testing Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its steel and materials testing machines, hardness testers, metallography equipment and rebar machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
