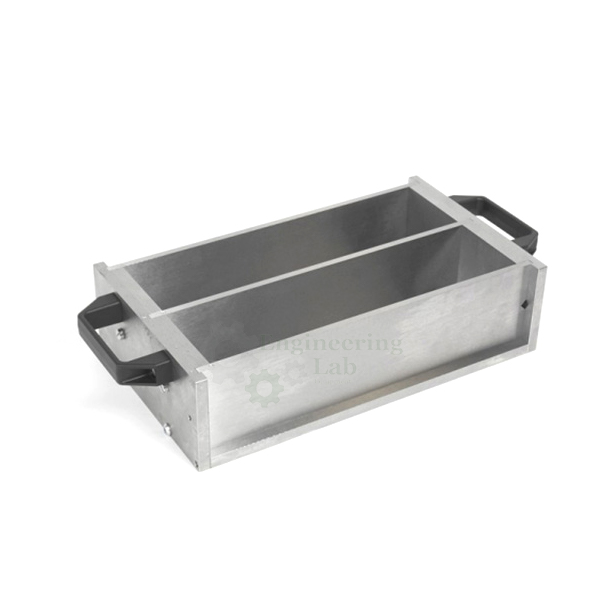

Prism Mould 25x25x280 mm
Product Code : EL-CTLE-10352
Prism Mould 25x25x280 mm (code EL-CTLE-10352) is a mould with three compartments (three gang) for casting the mortar prisms used in the accelerated expansion test. Each of the three prisms measures 25 × 25 × 280 mm, contact points are supplied with the mould, and each prism gives a 250 mm gauge length out of its 280 mm overall length.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Casting mortar prisms for the accelerated expansion test |
| Mould type | Three gang |
| Prism size | 25 × 25 × 280 mm |
| Supplied with | Contact points |
| Gauge length | 250 mm |
| Total length | 280 mm |
| Standards | UNI 11504 |
| Product code | EL-CTLE-10352 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Prism Mould 25x25x280 mm Used For?
An accelerated expansion test exposes mortar prisms to conditions that speed up a harmful reaction, so that expansion which would otherwise build up slowly shows within a short test period. The three compartments are filled with mortar together, with a contact point at each end of every prism. After demoulding, the length of each prism over its 250 mm gauge length is read, the prisms go into the test exposure, and readings are repeated at set intervals; the growth in length shows how far the mortar has expanded. The standard listed for the test is UNI 11504.
What to Specify When Ordering
- Quantity — the number of moulds required.
Frequently Asked Questions
What is the Prism Mould 25x25x280 mm used for?
It casts the mortar prisms for the accelerated expansion test in the cement laboratory, three at a time, and the standard listed for the test is UNI 11504.
What length do the prisms have?
Each prism has a total length of 280 mm, of which 250 mm is the gauge length over which the expansion readings are taken.
Does the mould come with contact points?
Yes. Contact points are supplied with the mould and are cast into the prism ends, giving the fixed measuring points for each length reading.
How many prisms are cast at once?
Being a three gang mould, it casts three 25 × 25 × 280 mm prisms in a single filling, all from the same batch of mortar.
OEM Manufacturer
Buyers of the Prism Mould 25x25x280 mm deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests cement testing equipment such as Vicat and Blaine apparatus, moulds, mixers and curing equipment, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
